Remote Controllers

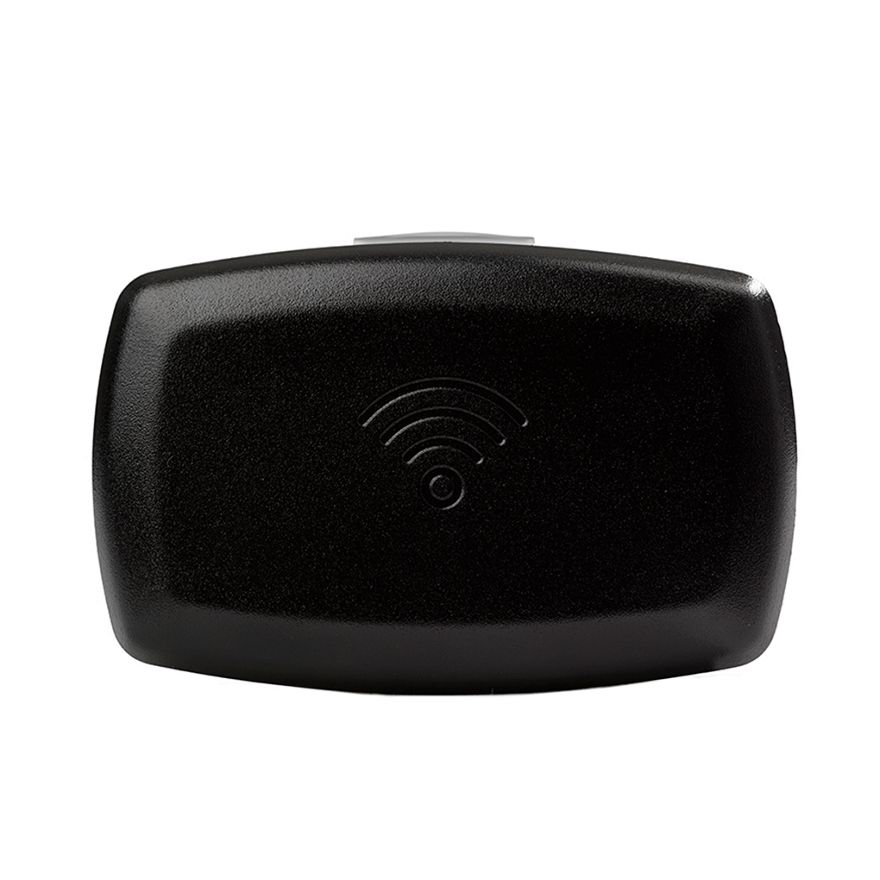

The Vingcard Remote Controller is fully compatible with Vingcard electronic locking systems.
Elevator Controllers
The RFID Elevator Controller for Visionline systems is designed to fit into elevator panels and can be operated offline or online. It improves the security level of the hotel, as only guests with a valid keycard will have access to the elevators.
Vingcard’s Elevator Controller is designed to be built into the elevator panel and operates offline. The security level of the hotel will increase, as only guests with a valid keycard will have access to the elevators/floors. The Elevator Controller is compatible with all of Vingcard’s card locking systems and is Mobile Access compatible.
Black
Satin Chrome
Polished Chrome
Satin Brass
Polished Brass
- Modern and minimalistic design – based on the same reader unit as Signature RFID locks
- Possible to limit access to floors according to each guest or staff’s keycard privileges
- Seven to eight relay outputs to selectively enable the elevator call buttons is delivered as standard
- Extendable with up to 15 extra relay modules, each with eight relay outputs, which gives a maximum of 128 relay outputs (Visionline version)
- Can also control different devices, such as electric strikes and motor locks
- Fully compatible with Vision and Visionline system
Ring around the reader can be delivered in black, satin chrome, satin brass, polished chrome or polished brass.
Power requirements Value Maximum current consumption for the elevator reader 150 mA continuously Maximum load of relay outputs 0,6A@125VAC or 2A@30VDC Resistive Each complete unit, supplied individually packed, consists of RFID Reader with frame in any standard metal finish. 20 m cable. RS-485 Gateway used as relay module and online communication gateway. Standards & Certifications European Low Voltage Directive European EMC Directive European Radio Equipment Directive Federal Communications Commission (FCC) Industry Canada (IC) UL-294
